Front lower control arm

~35 min

Status

You're in demo mode. Create an account to mark steps complete, save notes, and upload photos.

Tools you'll use

Parts from your kit

What to do0 / 7 checked

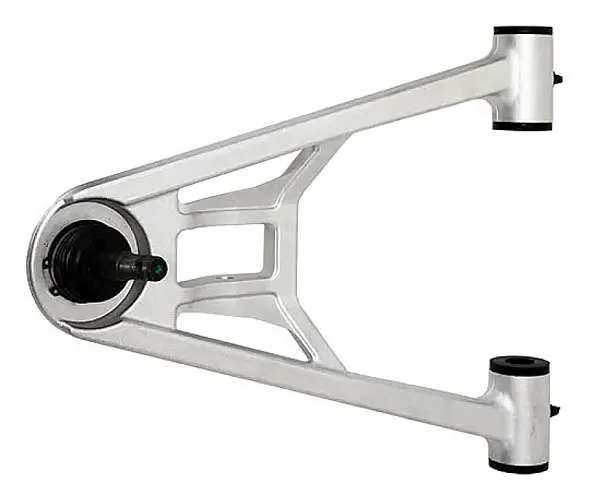

Unpack the front lower control arms and hardware.p. 45

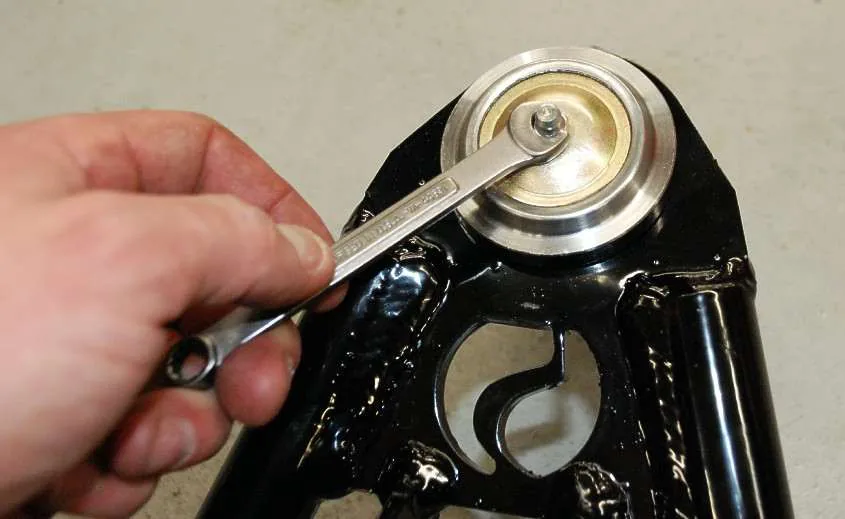

Screw the grease fittings into the arms using a 5/16” wrench.p. 45
Use a grease gun to fill the lower control arm bushings until grease comes out the bushing flutes.p. 46
The balljoints are pre-greased but add a couple of pumps of grease to these as well.p. 46

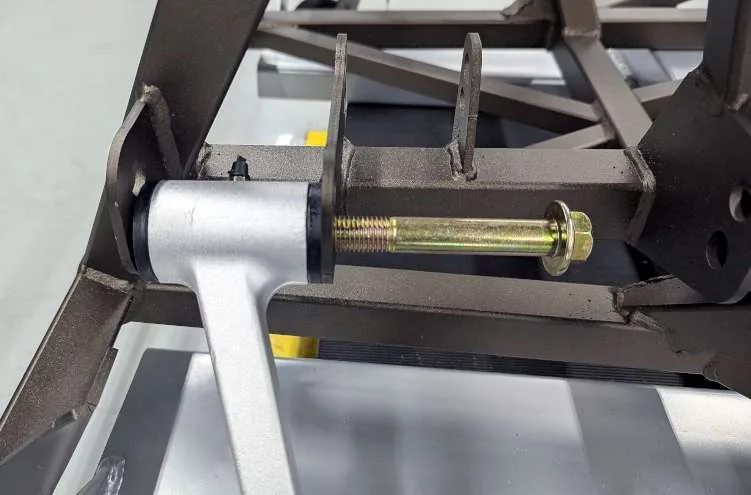

Mount the lower control arms using the lower set of holes on the chassis using the supplied hardware from the inside out.p. 46

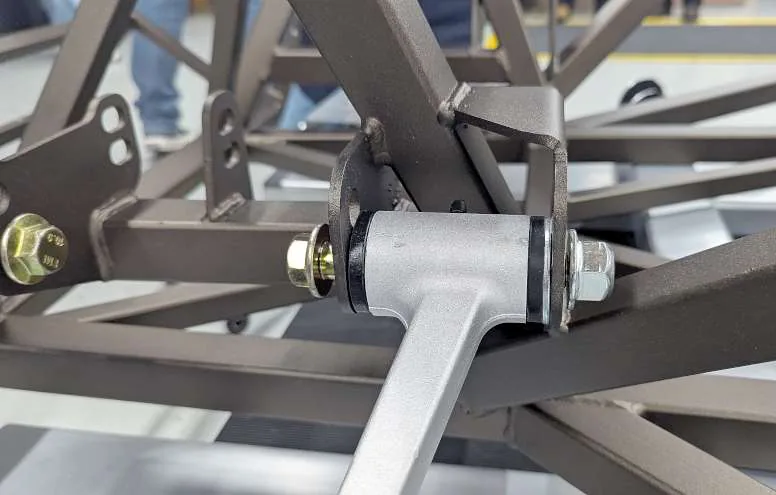

The rear bushing mount on the chassis is wider to be able to accept OEM arms so use the large washers provided to take up the extra space.p. 47
While holding the arm parallel to the ground, torque the bolts to 135-149Nm (100-110 lb.-ft).⚙ 135-149 Nm⚙ 100-110 lb.-ftp. 47
